EXFO FTB-200-S1, EXFO FTB-7400E-23B-EI-EUI OTDR Compact Platform
Used EXFO OTDR FTB-200-S1, EXFO FTB-7400E-23B-EI-EUI, 1310/1550nm, 42/41 db
Product Overview

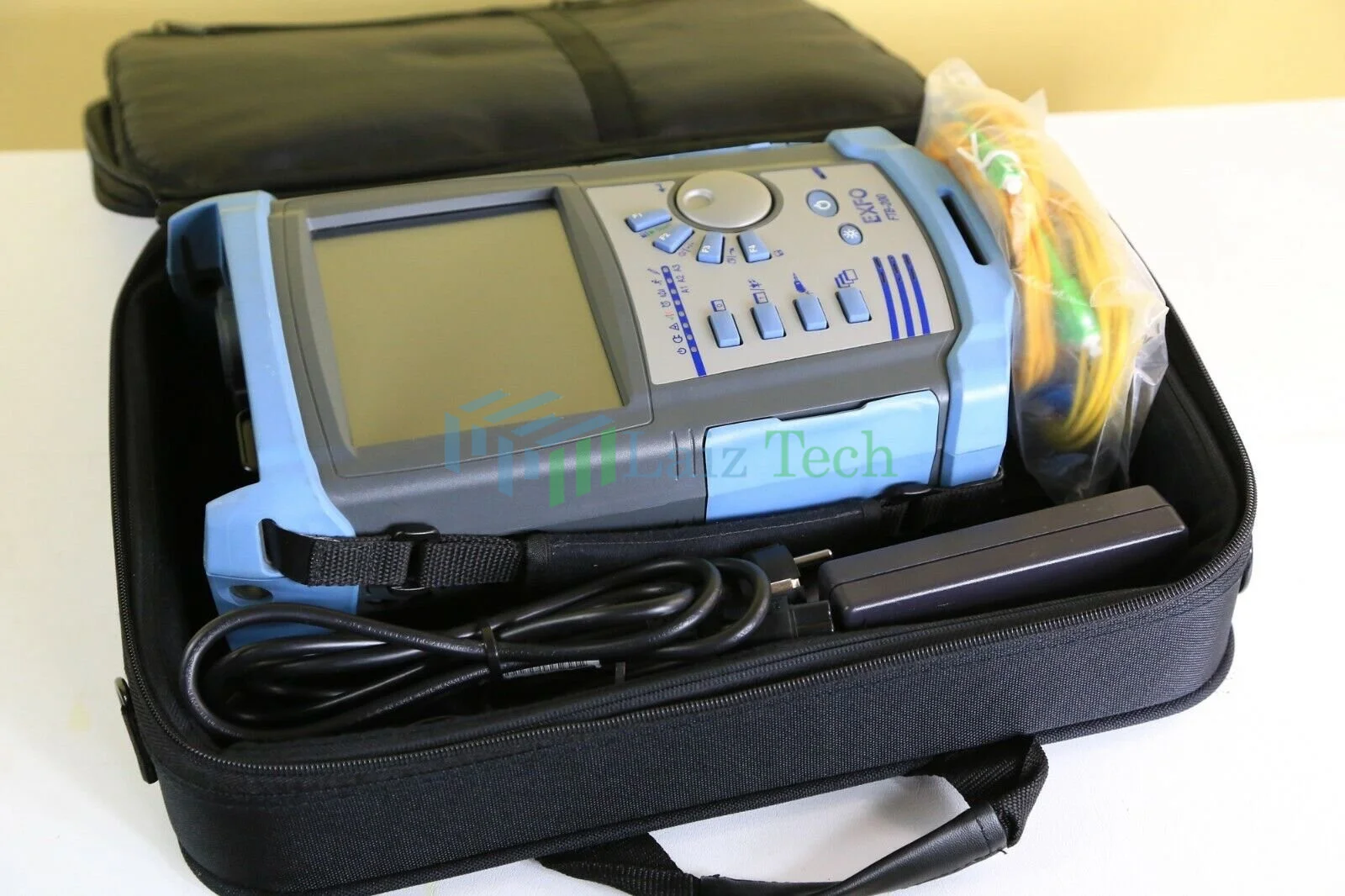

Selling a used EXFO OTDR Compact Platform FTB-200-S1 with module EXFO FTB-7400E-23B-EI-EUI, 1310/1550nm, 42/41 db. Comes with Fiber Optical Patch Cord Cables, Power, Stylus and Backpack. We offer a 30-day money back guarantee. Ships worldwide.
Key features
- Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
- Loaded with utilities: all the tools required to maximize fi eld testing, plus third-party applications
- Like a PC: Intel processor with Windows Embedded Standard operating system
- EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
- GPS capabilities: accurate coordinates under the same conditions as a regular satellite GPS receiver
The power you need, no matter the application
The FTB-200 delivers the processing power of a high-end platform for a variety of advanced applications—all in a conveniently sized go-anywhere field-testing tool.
CWDM Turn-Up Testing: Integrate two metro/CWDM OTDRs to test through CWDM-based mux/demux at ITU-recommended wavelengths.
40G and ROADM Commissioning: House an OSA into a compact portable solution for fast and accurate DWDM commissioning and high-speed networking—up to 40 Gbit/s.
Multiservice Testing: Simultaneously run a 10 gigabit next-generation SONET/SDH analyzer, as well as 1 gigabit and 10 gigabit Ethernet analyzers, delivering IPTV test capabilities and TCP throughput assessment.
Fiber Characterization and Construction: Combine connector inspection, OLTS, OTDR, PMD and CD testing in a single solution, or incorporate an OTDR with a multitest module, for in-depth link characterization.
Business Service Activation: Join an FTTx PON/MDU OTDR featuring a dynamic range of up to 39 dB with a 1/10 gigabit Ethernet testing module, to simplify and speed up the deployment of Ethernet services.
Carrier Ethernet Testing from 10 Mbit/s to 10 Gbit/s: Benefit from a comprehensive suite of Ethernet testing capabilities, including EtherSAM (ITU-T Y.1564),
for turning up and troubleshooting mobile backhaul, commercial and wholesale services.
FTB-200 Specifications
| General | ||
| Display | Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in) | |

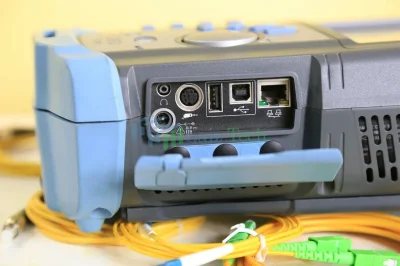

| Interfaces | 2x USB 2.0 ports | |
| RJ-45 LAN 10/100/1000 Mbit/s | ||
| Fiber inspection probe connector port (video) | ||
| Built-in Bluetooth and Wi-Fi (hardware option) | ||
| Computer | Intel ATOM processor; Windows Embedded Standard | |
| Storage | 8 GB internal memory (flash) | |
| Battery | Rechargeable lithium-ion batteries; 8 hours of operation as per Telcordia (Bellcore) GR-196 | |
| Power supply | Power supply AC/DC adapter, input 100 - 240 V; 50/60 Hz | |
| Dimensions (H x W x D) | 322 x 197 x 109 mm | |
| Weight | 2.1 kg (4.6 lb) | |
| Environmental | ||
| Operating temperature | –5 °C to 50 °C (23 °F to 122 °F) | |
| Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) | |
| Relative humidity | 0 % to 95 % non-condensing | |
| Power Meter | ||
| Standard | Detector type | InGaAs |
| Uncertainty | ±5 % ± 3 pW | |
| Measurement range (dBm) | 10 to -86 | |
| Optional CWDM calibrated wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1383, 1625 |
|
| Display resolution (dB) | 0.01 = max to -76 dBm | |
| 0.1 = -76 dBm to -86 dBm | ||
| 1 = -86 dBm to min | ||
| Automatic offset nulling range | Max power to -63 dBm | |
| Tone detection (Hz) | 270/1000/2000 | |
| Optional high power | Detector type | GeX |
| Uncertainty | ±5 % ± 0.4 nW | |
| Measurement range (dBm) | 26 to -64 | |
| Wavelengths range (nm) | 850, 1300, 1310, 1490, 1550, 1625, 1650 | |
| Display resolution (dB) | 0.01 = max to -54 dBm | |
| 0.1 = -54 dBm to -64 dBm | ||
| 1 = -64 dBm to min | ||
| Automatic offset nulling range | Max power to -40 dBm | |
| Tone detection (Hz) | 270/1000/2000 | |
