Exfo MaxTester 940 SM1 OLTS Fiber Certifier

Used Condition | ✓ In Stock (Ready to Ship)

$2,300 USD Excl. Freight & Local Taxes

Exfo MaxTester 940 SM1-EI OLTS Optical Loss Test Set

Product Overview

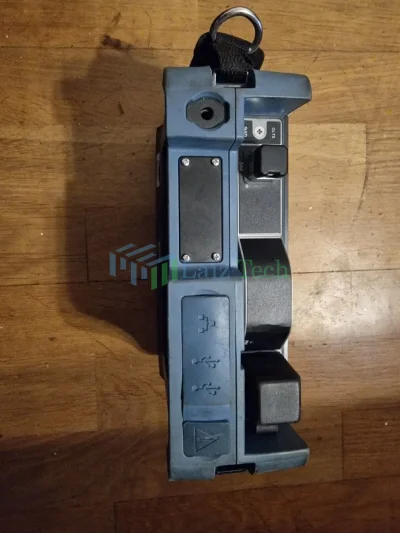

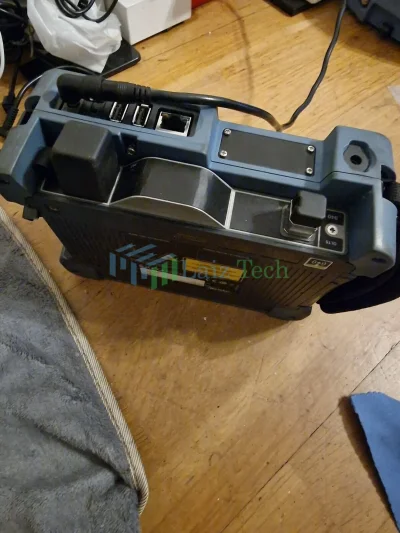

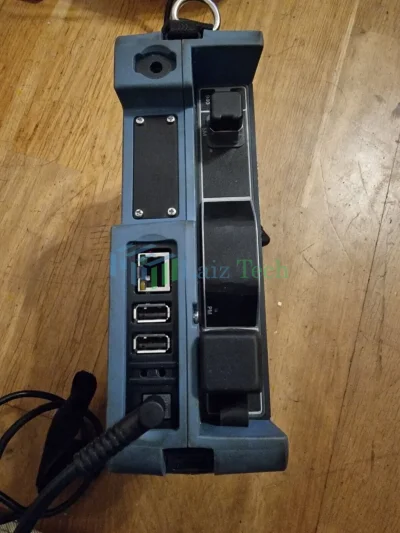

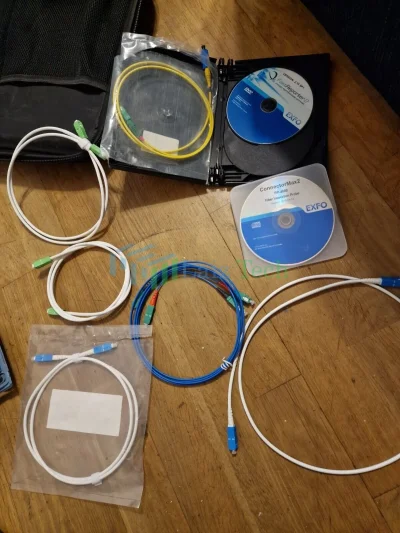

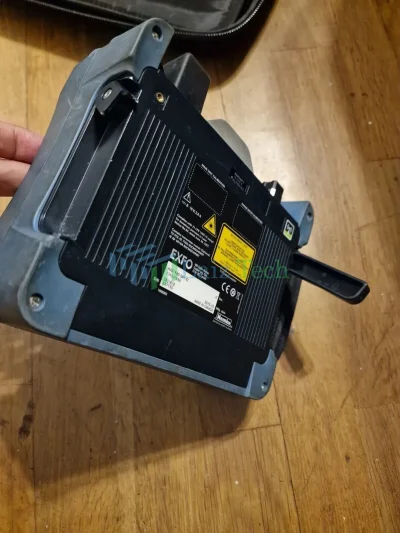

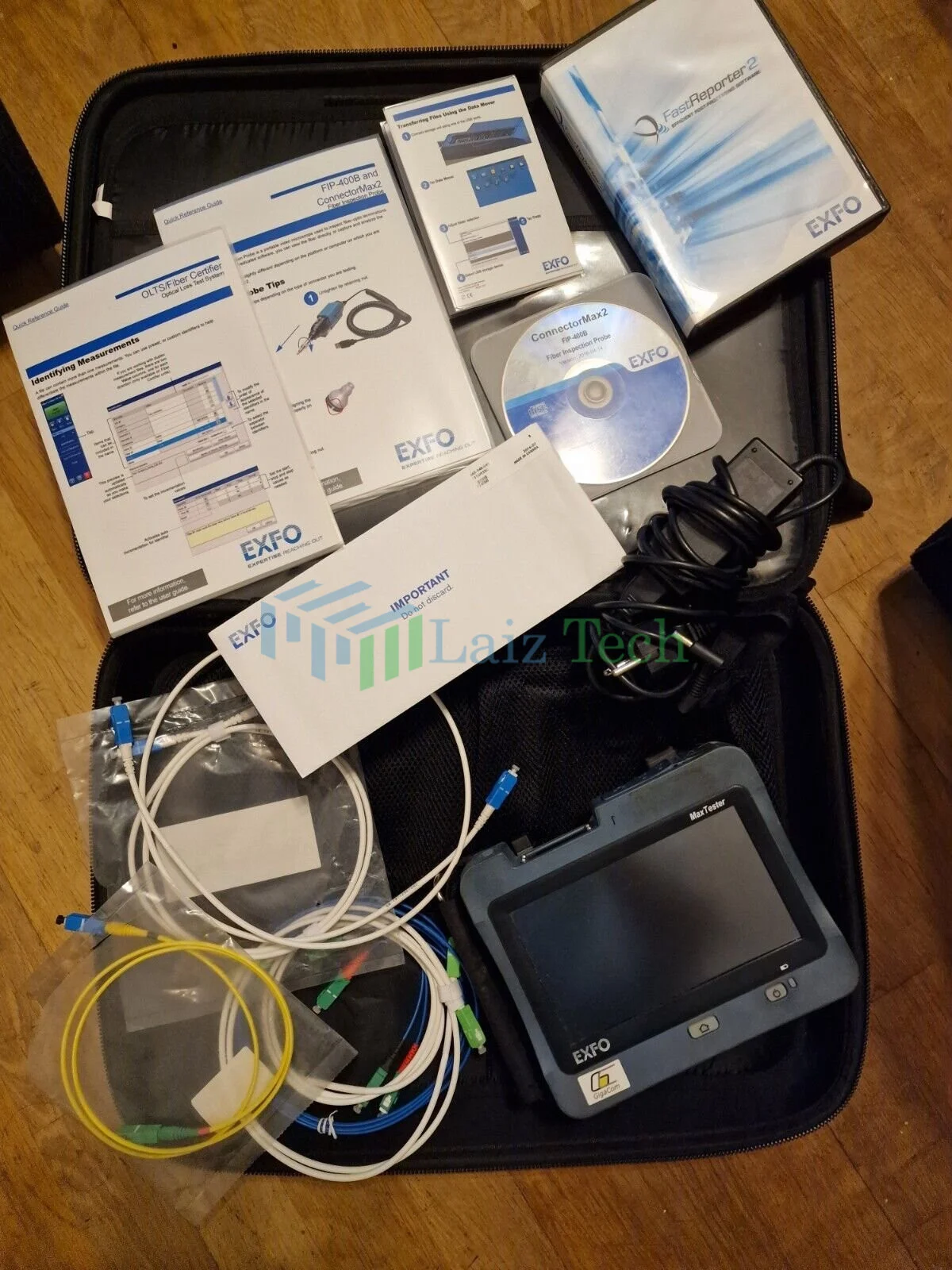

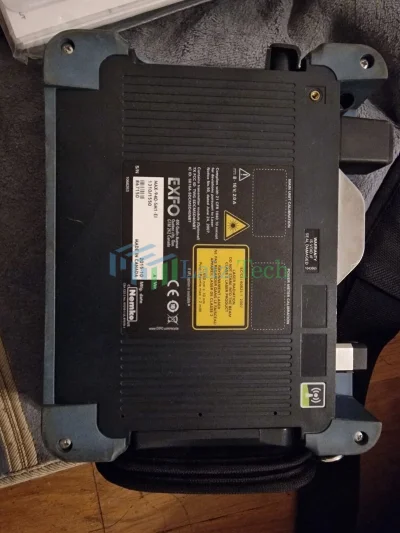

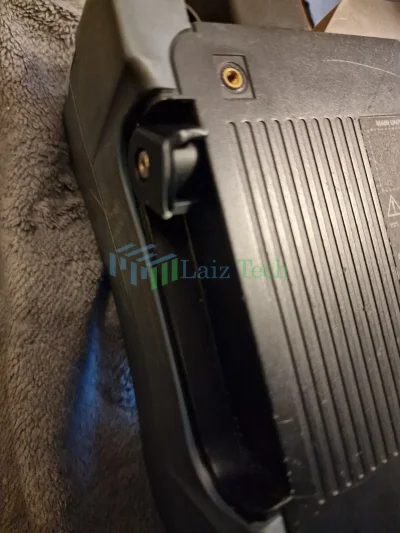

Selling a used Exfo MaxTester 940 SM1-EI Fiber Certifier. A tier-1 OLTS in good condition. MAX-940-SM1 MULTITESTER.Wavelengths 1310 nm and 1550nm. Calibration certificate from mid 2016 included from Exfo. Some usage marks you can find but nothing rough. One side of strand is boken (see picture) but still it can stand but not very stable. Rubber case on sides are slightly dirty. Comes with fiber cables as shown on picture. Plus CD, s Connector Max2 and FastReporter 2, original bag and Charging (See pictures what you get). It is working as it should. We offer a 30-day money back guarantee. Ships Worldwide.

Key features

Unmatched FasTesT™ performances: 100 % automated bidirectional test at two wavelengths under 5 seconds
100 % automated fiber inspection: one-step process with pass/fail analysis at both fiber ends
On-board assistant and diagnosis to eliminate reference errors and negative loss
Improved short fiber measurement
On-board professional PDF reporting

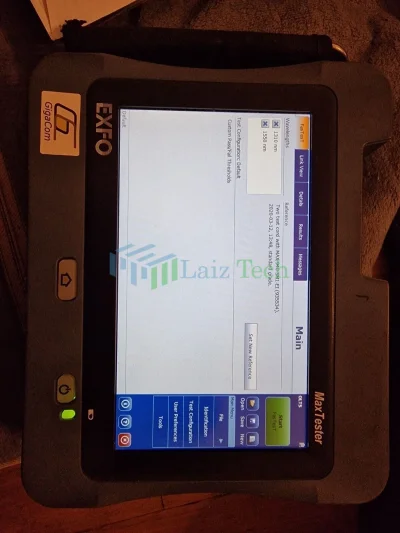

Bright, 7-inch high resolution touchscreen displa the biggest in the market
Best-in-class singlemode distance range of 200 km
EXFO Connect-ready for cloud-based test assets management
WiFi and Bluetooth connectivity (optional)

Applications

FTTx construction
Telecommunications and outside plant networks testing
Data centers
Enterprise structured cabling

MaxTester 940 Specifications

General
Display	7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
Interfaces	Two USB 2.0 ports
	RJ45 LAN 10/100 Mbit/s
	Optional WiFi/Bluetooth
Storage	6 GB internal memory (150 000 test results, typical)
Battery	Rechargeable lithium-polymer battery, 12 hours of operation
Power supply	Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz
Dimensions (H x W x D)	166 x 200 x 68 mm
Weight	1.5 kg (3.3 lb) with battery
Environmental
Operating temperature	–10 °C to 50 °C (14 °F to 122 °F
Storage temperature	–30 °C to 70 °C (–22 °F to 158 °F)
Relative humidity	0 % to 95 % non-condensing
Power Meter
Standard	Detector type	InGaAs
	Uncertainty	±(5 % + 32 pW)
	Measurement range (dBm)	5 to —75
	Wavelengths range (nm)	850, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1383, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650
	Tone detection (Hz)	270/330/1000/2000
Optional high power	Detector type	GeX
	Uncertainty	±(5 % + 10 nW)
	Measurement range (dBm)	25 to —50
	Wavelengths range (nm)	850, 1300, 1310, 1490, 1550, 1625, 1650
	Tone detection (Hz)	270/330/1000/2000
Source
Output power (dBm)	Multimode (850 nm/1300 nm	–25
	1310 nm/1550 nm	2.5
Output power stability (dB)	±0.05 over 8 hours
Spectral width (FWHM) (nm)	850 nm	30 to 60
	1300 nm	100 to 150
FastTesT
Testing speed	FasTesT™ Simplex: 3 seconds (two wavelengths, bidirectional, automated, IL + fiber length)
	FasTesT™ Simplex: 6 seconds (three wavelengths, bidirectional, automated, IL + ORL + fiber length)
Wavelengths (nm)	Multimode (LED)	850 ± 20
		1300 ± 20
	Singlemode (laser)	1310 ± 20
		1490 ± 10
		1550 ± 20
		1625 ± 10
Launch condition	Encircled Flux (EF) compliancy guaranteed at 50/125 µm multimode source port
	Within TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 EF template limits at the end of an EXFO reference-grade 50/125 μm test cord.
Loss range (dB)	Multimode	20
	Singlemode simplex	45
	Singlemode duplex	50
Length measurement range (km)	Multimode	20
	Singlemode	200
Length measurement uncertainty	Duplex	±(0.5 m + 0.5 % x length)
	Simplex	±(1 m + 0.5 % x length)
ORL measurement range (dB)	50
ORL measurement uncertainty (dB)	±1
Visual Fault Locator (optional)
Laser	650 nm ± 10 nm
CW/Modulate	1 Hz
Typical Pout in 62.5/125 µm	> –1.5 dBm (0.7 mW)
Laser safety	Class 2
